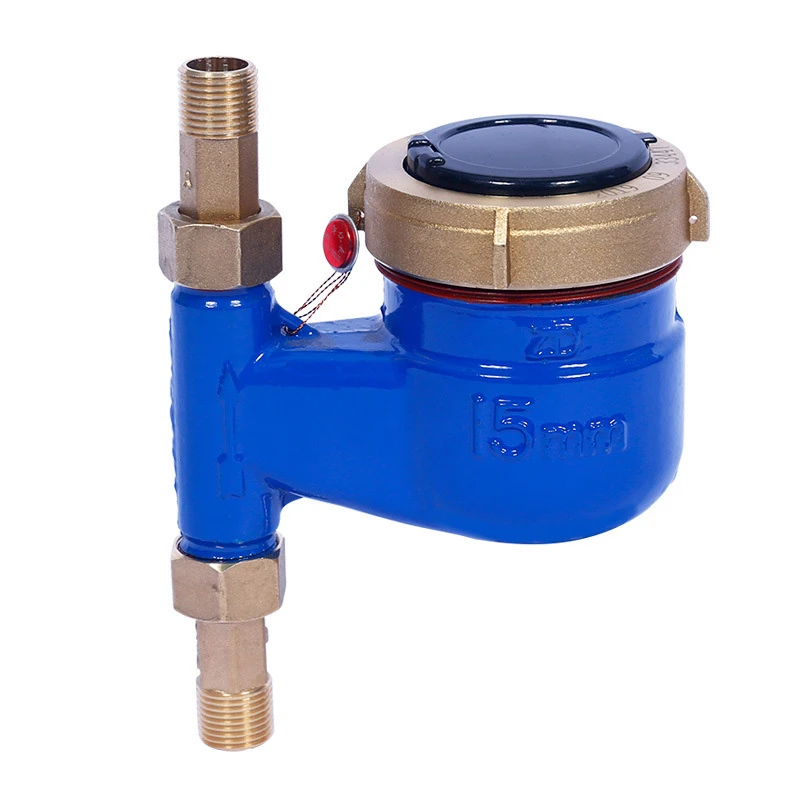

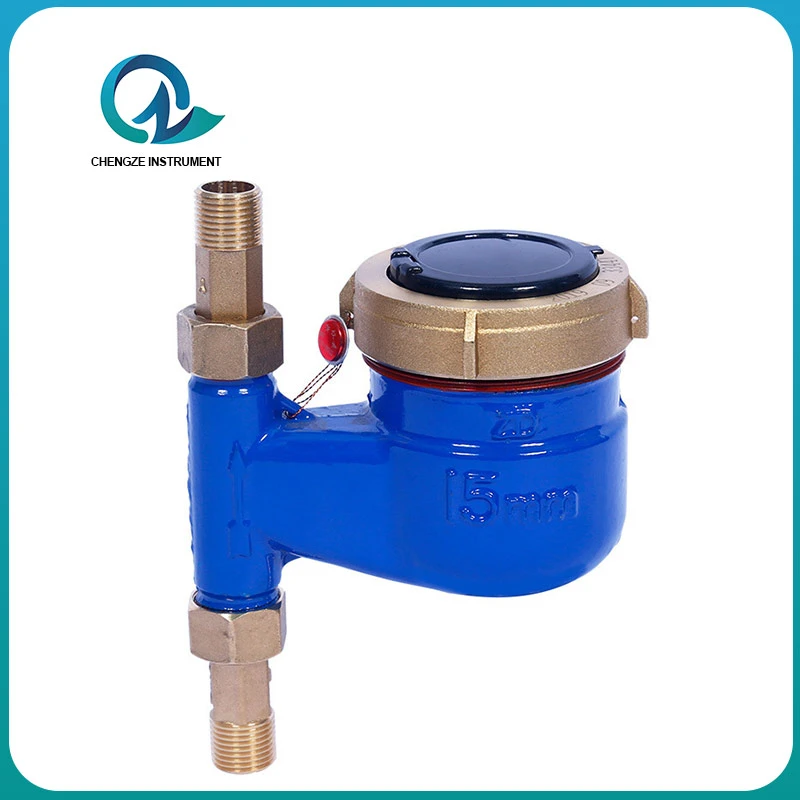

Small-diameter Mechanical Water Meter

The meter is used to measure the total amount of drinking water flowing through a tap water pipe. It is only suitable for clean water that flows in one directio.

Need to Track Water Usage in a Compact Space? Meet the Small-Diameter Mechanical Water Meter!

When you need to monitor water flow in a house, an apartment, or a specific piece of equipment, you often don't have the luxury of a lot of space. That's exactly where the small-diameter mechanical water meter shines! These compact workhorses are the unsung heroes of residential and light-commercial water measurement.

Think of them as the efficient, no-nonsense option for standard water billing. Designed for smaller pipe sizes, they provide a straightforward and cost-effective solution for measuring cold water consumption. Their genius lies in their simplicity. The water flow spins an internal mechanism, which directly turns the numbers on the easy-to-read register. No external power needed-just pure, reliable .

in a compact, easy-to-install package. They are the go-to choice for , ensuring fair billing for each tenant. Their robust build means minimal maintenance and a long service life, providing excellent value.

for standard residential applications, look no further. It's the simple, proven way to keep track of every drop.

Think Small. Measure Smart. Choose a Small-Diameter Mechanical Water Meter for reliable, compact performance.

After the water flows into the water meter, it enters the measuring mechanism through the lower inlet holes of the impeller housing, driving the rotation of the impeller. The water then exits through the upper outlet holes of the impeller housing. The speed of the impeller is directly proportional to the flow rate of the water. The rotation of the impeller is transmitted via a reduction gear to the indicator mechanism, which records the total amount of water that has flowed through the meter. The counter of this water meter is immersed in the measured water, known as a rotary-wing wet-type water meter. The basic unit of measurement for this water meter is M3.



The components are made of high quality materials and corrosion resistant treatment, with the advantages of accurate measurement, durable and convenient maintenance.

Temperature level: cold water 30℃, hot water 0-90℃ can be customized
Pressure rating: MAP10
Pressure loss rating: AP63
Upstream flow sensitivity level: U10
Downstream flow sensitivity level: D5

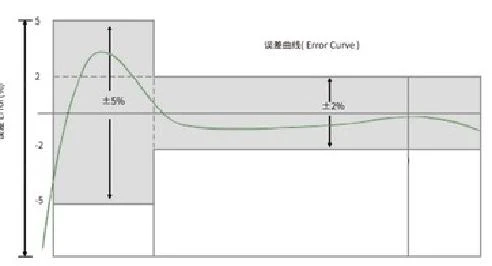

A) Low area (Q1WQ B) High area (Q1WQWQ1) The maximum allowable error is ±2%
